PENDENT TYPE SPRINKLER

PENDENT TYPE SPRINKLER

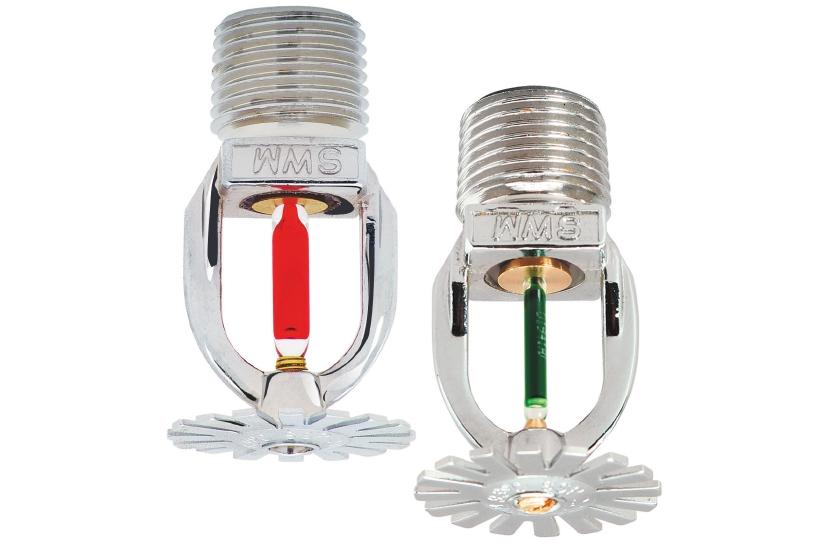

A Pendent Type Sprinkler is a ceiling-mounted fire sprinkler that hangs downward and disperses water in a full circular spray pattern. It is the most commonly used sprinkler type for offices, shops, homes, malls, hotels, and commercial buildings due to its wide coverage and efficient fire suppression performance.

Features:

• 360u00b0 Water Distribution u2013 Provides full circular spray coverage ideal for open floor areas.
• Ceiling-Mounted Design u2013 Installed on ceilings to detect rising heat quickly.
• High Fire Suppression Efficiency u2013 Offers powerful and uniform water spread.
• Available in Quick or Standard Response u2013 Suitable for life safety or property protection.
• Compact and Aesthetic Look u2013 Blends easily with false ceilings and modern interiors.
• Wide Range of Applications u2013 Suitable for commercial, industrial, and residential use.
• Multiple Temperature Ratings u2013 Supports ordinary to high-temperature fire hazard zones.
• Durable Construction u2013 Made from corrosion-resistant brass with long-lasting coatings.
• Easy Installation and Replacement u2013 Simple ceiling-level mounting reduces labor time.
• Compatible with Concealed Plates (Optional) u2013 Can be used with cover plates for aesthetic requirements.

Specifications:

• Type: Ceiling-mounted Pendent Fire Sprinkler
• Spray Pattern: 360u00b0 circular spray distribution
• K-Factor: K 2.8, K 5.6, K 8.0, K 11.2 depending on model
• Operating Temperature: 57u00b0C, 68u00b0C, 79u00b0C, 93u00b0C, 141u00b0C
• Response Type: Quick Response (3mm bulb) or Standard Response (5mm bulb)
• Thread Size: u00bd inch or u00be inch NPT/BSPT
• Working Pressure: Up to 175 psi (12 bar)
• Material: Brass body with chrome, brass, white, or custom-coated finishes
• Installation Standard: NFPA 13, IS 15105, and local fire safety codes
• Approvals: UL Listed / FM Approved (as per model)
