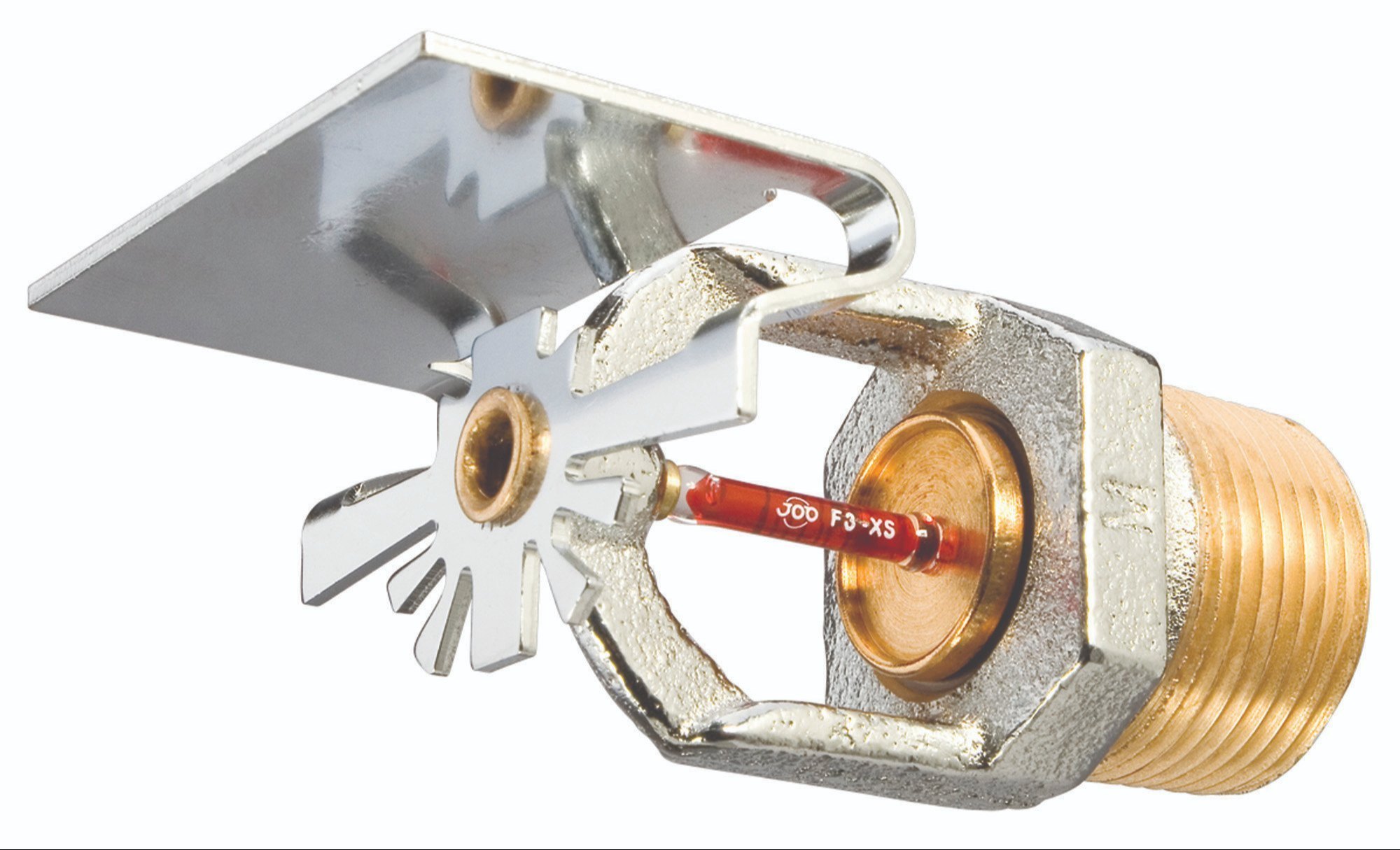

SIDEWALL TYPE SPRINKLER

SIDEWALL TYPE SPRINKLER

A Sidewall Type Sprinkler is a fire sprinkler designed to be installed on walls instead of ceilings. It provides a fan-shaped horizontal spray pattern that covers rooms, corridors, and small spaces where ceiling piping is not possible. It is ideal for hallways, hotel rooms, offices, and areas with restricted ceiling access.

Features:

• Wall-Mounted Installation u2013 Designed to fit on walls, eliminating the need for ceiling piping.
• Half-Circle Spray Pattern u2013 Delivers wide horizontal distribution suited for room and corridor protection.
• Space-Saving Design u2013 Ideal for narrow spaces where ceiling sprinklers are not feasible.
• Quick or Standard Response Options u2013 Available for both life safety and property protection needs.
• Aesthetic Appearance u2013 Compact, clean design suitable for hotels, offices, and residential interiors.
• High Coverage Efficiency u2013 One sprinkler can cover areas typically requiring multiple ceiling sprinklers.
• Multiple Temperature Ratings u2013 Available for ordinary, intermediate, and high-temperature hazard areas.
• Strong Corrosion Resistance u2013 Constructed using brass and corrosion-resistant coatings for long life.
• Easy Maintenance & Inspection u2013 Positioned on walls, making them simpler to check compared to ceiling units.
• Reduced Installation Cost u2013 Requires simpler piping networks, reducing material and labor expenses.

Specifications:

• Type: Horizontal / Vertical Sidewall Fire Sprinkler
• Mounting Position: Wall-mounted with deflector facing outward
• K-Factor: Available in K 2.8, K 5.6, K 8.0 depending on model
• Operating Temperature: 57u00b0C, 68u00b0C, 79u00b0C, 93u00b0C, 141u00b0C
• Response Type: Quick Response (3mm bulb) / Standard Response (5mm bulb)
• Spray Pattern: u00bd-circle horizontal spray distribution
• Thread Size: u00bd inch or u00be inch NPT/BSPT
• Working Pressure: Up to 175 psi (12 bar), model-dependent
• Material: Brass body with chrome/white/polyester finish
• Approvals: UL Listed / FM Approved / NFPA 13 compliant
